The SMT industry requires consistently high efficiency and strict quality control, and the solder paste printing stage is especially critical to overall process performance. Many SMT workshops operate with advanced placement equipment, SPI, and AOI systems, yet stencil management still relies on manual handling and outdated practices. This disconnect between automated production lines and traditional stencil control has become a practical bottleneck, reducing operational efficiency and increasing quality risks in production. This article examines common challenges in traditional stencil management and explains how smart stencil cabinets address them in modern SMT operations.

Challenges in Traditional Stencil Management

Traditional stencil management methods struggle to meet the demands of modern SMT production, creating multiple operational and quality challenges:

1. Quality Risks

Using an incorrect stencil version can result in defects across an entire production batch, often detected only after significant downstream processing.

In addition, stencils that exceed recommended usage limits or are not properly monitored can degrade accuracy during the solder paste printing process, directly affecting print quality and yield.

2. Efficiency Bottlenecks

Frequent product changeovers require stencils to be located, verified, and prepared within limited time windows. Manual searching and confirmation slow this process, increasing machine idle time and reducing overall equipment effectiveness.

3. Lack of Traceability

When printing or assembly defects occur, it is difficult to determine whether stencil selection, usage history, or stencil condition was a contributing factor.

Paper records and informal logs rarely provide complete or reliable data, which also extends root-cause analysis and complicates the accountability process.

4. Management Costs

Stencil control often depends on the experience of senior engineers who understand version differences and usage limits. This reliance raises training costs for new staff, increases the risk of inconsistent execution, and makes standardized management across shifts and teams difficult to maintain.

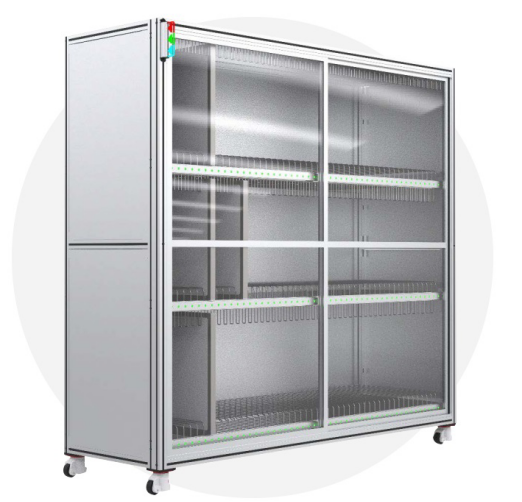

How PassionIOT Smart Stencil Cabinets Redefine SMT Material Management

PassionIOT smart stencil cabinets replace manual stencil handling with a structured, automated stencil storage approach. Here is how:

1. Digital Identity and Location

(1) One Stencil, One Code

Each stencil is assigned a unique digital identity. This code links the stencil to its version information, usage status, and operational history, which ensures that every stencil can be clearly identified throughout its lifecycle.

(2) One Bin, One Light

Each storage stencil slot within the cabinet is equipped with a dedicated visual indicator. During storage and retrieval, the system activates the corresponding light to guide the operator to the correct location, reducing uncertainty and eliminating reliance on memory or manual labeling.

2. Error Prevention

The PassionIOT smart stencil cabinets address the stencil selection error issues with ease. When a work order is scanned using a PDA, the system activates the indicator light at the correct stencil location. During retrieval, a secondary scan confirms that the stencil version matches the work order requirements. If an incorrect action occurs, the system issues an immediate visual and alarm alert.

3. Precise Full-Lifecycle Control

These stencil cabinets automatically record stencil usage every time a stencil is issued or returned. The system tracks usage counts against predefined life thresholds and provides advance warnings before limits are reached. This allows you to plan the maintenance or replacement proactively, rather than reacting to printing defects caused by worn or overused stencils. As a result, print quality remains stable, and stencil life is managed in a controlled manner.

4. End-to-End Data Traceability and Closed-Loop Management

All stencil access events are logged digitally as part of the overall SMT material control, including operator identity, access time, stencil ID, and storage location. These records are automatically generated and cannot be altered, forming a reliable audit trail.

Stencil usage data is also linked with MES work orders and PCB serial numbers, creating a complete data chain from stencil selection to finished board. This closed-loop traceability supports faster root-cause analysis, clearer accountability, and stronger quality control across the SMT process.

Compatible Models and Application Value

1. Compatible Models

PassionIOT smart stencil cabinets are designed to support the standard stencil frame sizes widely used in SMT production. The system accommodates both 736 mm and 584 mm stencil formats, allowing direct integration into existing stencil inventories without requiring changes to current tooling or processes.

2. Application Value

As part of modern SMT material management solutions, our smart stencil cabinets deliver the following benefits:

(1) Quality Improvement

By enforcing correct stencil identification and controlled usage, the system prevents version-related errors and reduces the risk of improper stencil application. Stable stencil selection and lifecycle management help maintain consistent printing performance and minimize first-pass yield losses caused by printing defects.

(2) Efficiency Gains

Stencil retrieval and verification are completed through guided operations that take only seconds. This significantly shortens line changeover time, reduces equipment idle periods, and contributes to measurable improvements in overall equipment effectiveness.

(3) Management Optimization

When you use smart stencil cabinets, stencil assets are managed digitally rather than through manual records or individual experience. This reduces dependence on senior personnel, standardizes operating procedures, and improves coordination across shifts and teams.

(4) Decision Support

Comprehensive usage and access data form a reliable information base for analyzing stencil performance, maintenance needs, and operational costs. This data-driven approach supports continuous process optimization and more informed management decisions across the SMT operation.

Conclusion

Traditional stencil management remains a critical bottleneck that limits efficiency and quality in otherwise highly automated SMT lines. PassionIOT smart stencil cabinets transform stencils from error‑prone tools into traceable digital assets through digital identity, visual guidance, full‑lifecycle control, and closed‑loop traceability. This eliminates selection errors, accelerates changeovers, and ensures printing consistency.

Ready to upgrade your stencil management. Contact us today to take the first step toward intelligent, reliable SMT material control.
