SMD Smart Reel Rack

The PassionIOT SMD Smart Reel Rack is a cost-effective, manual storage solution designed for small enterprises with limited budgets. While it lacks automation, the rack uses sensors to detect reel placement, ensuring real-time inventory updates. The system supports one-to-one mapping of materials to storage locations, reducing human error in material retrieval. This practical approach offers efficient storage and retrieval while maintaining accuracy, making it an ideal choice for businesses seeking reliable yet affordable material management.

Enquire Now

/public/uploads/images/20240422/4ec6aff65088dde4e77fa303547c16f2.png

Features

PRODUCT PARAMETERS

Item	Specification
Dimensions	L2130×W400×H1920 mm
Storage Capacity	7 layers, double-sided, 1400 slots
Slot Specifications	Net width 16 mm, adjustable
Sensing Principle	Magnetic induction
Slot Lighting	RGB multicolor LED
Power Consumption	20 W
Control Method	1 controller for 6 modules
Bus Protocol	High-speed CANBUS
Uplink Interface	RJ45 TCP
ESD Protection	Full system ESD
Safety Protection	Built-in circuit breaker and leakage protection in controller
Maintenance	Modular design for easy disassembly

Item	Specification
Dimensions	L2130×W400×H1920 mm
Storage Capacity	5 layers, single-sided, 500 slots
Slot Specifications	Net width 16 mm, adjustable
Sensing Principle	Magnetic induction
Slot Lighting	RGB multicolor LED
Power Consumption	10 W
Control Method	1 controller for 12 modules
Bus Protocol	High-speed CANBUS
Uplink Interface	RJ45 TCP
ESD Protection	Full system ESD
Safety Protection	Built-in circuit breaker and leakage protection in controller
Maintenance	Modular design for easy disassembly

Item	Specification
Dimensions	L2130×W400×H1920 mm
Storage Capacity	4 layers, single-sided, 400 slots
Slot Specifications	Net width 16 mm, adjustable
Sensing Principle	Magnetic induction
Slot Lighting	RGB multicolor LED
Power Consumption	10 W
Control Method	1 controller for 14 modules
Bus Protocol	High-speed CANBUS
Uplink Interface	RJ45 TCP
ESD Protection	Full system ESD
Safety Protection	Built-in circuit breaker and leakage protection in controller
Maintenance	Modular design for easy disassembly

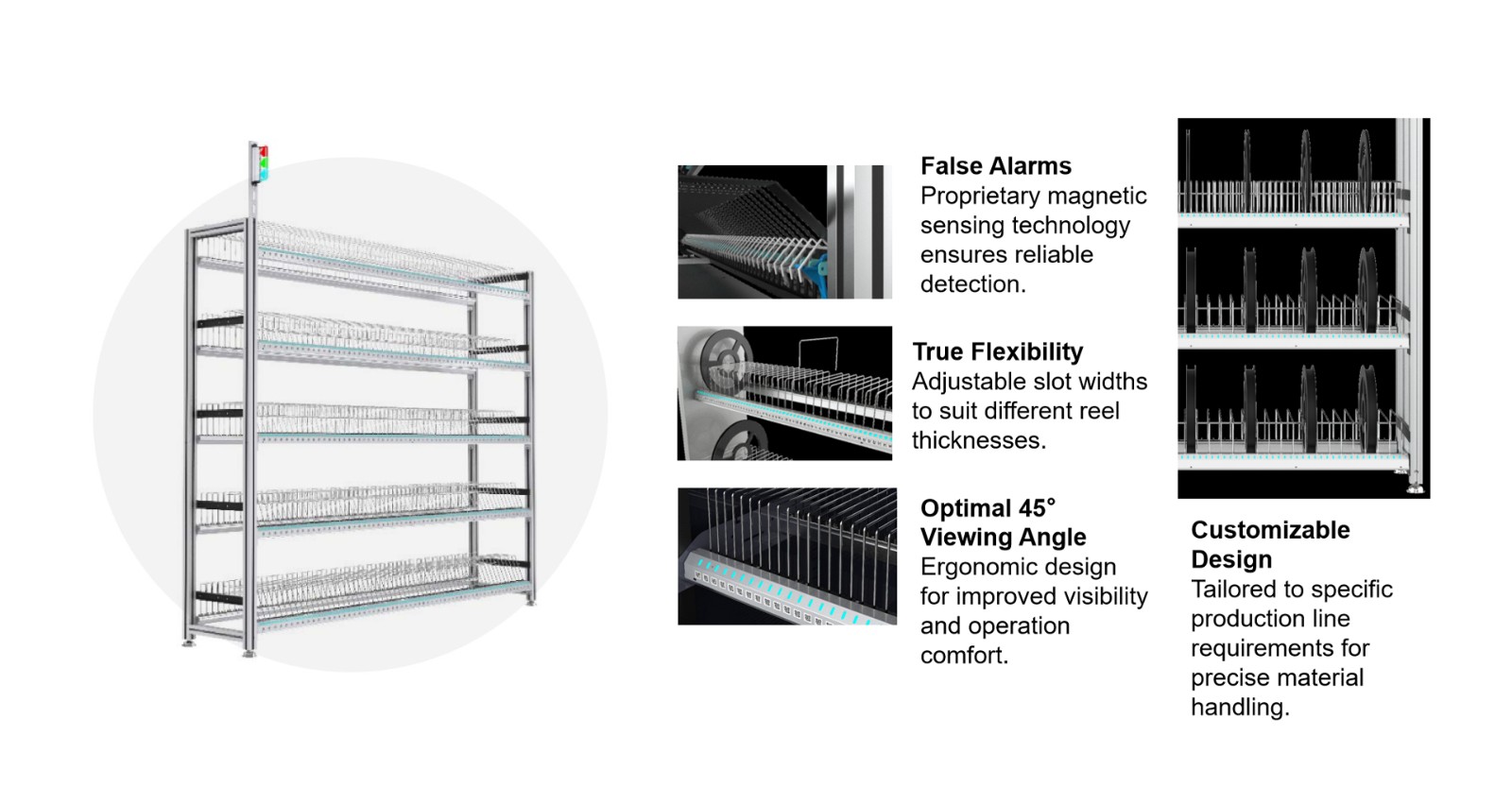

Customizable Design Tailored to specific production requirements for precise material handling.

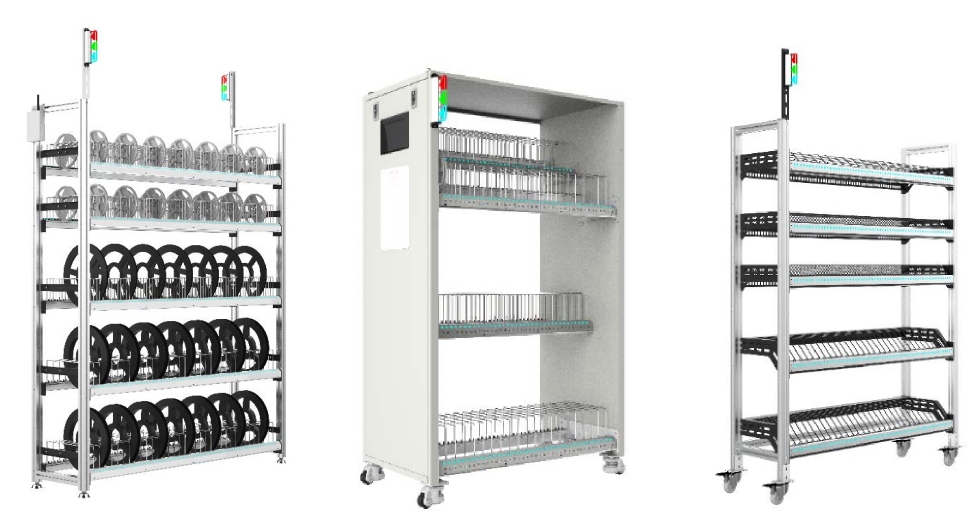

·Line-Side Mixed-Storage Rack

·Standalone Wi-Fi connectivity

·Customizable storage capacity and slot size as user requirements

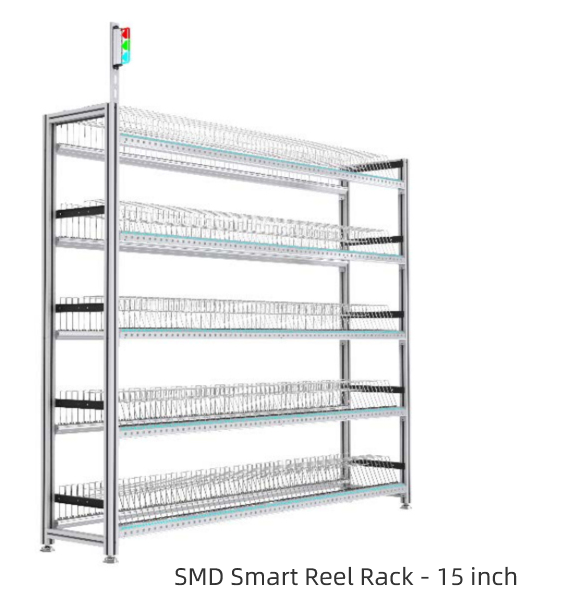

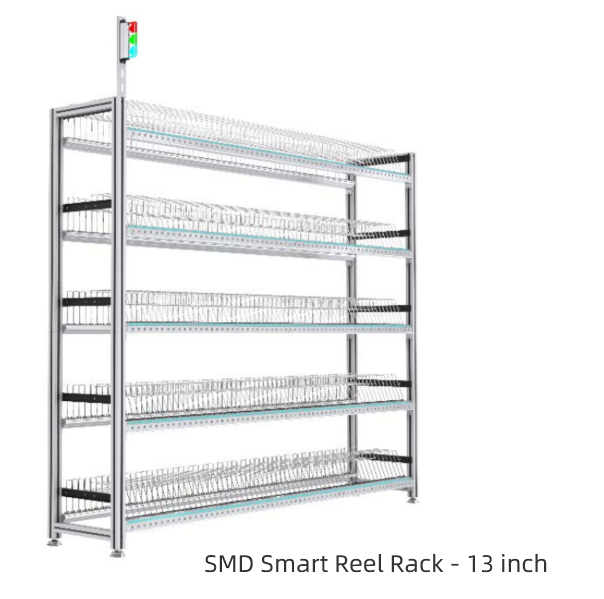

·13"/15" Dual-Sided Rack

·Double-sided storage

·Optional support for 6" to 16" reels
