Home PRODUCTS Reel Rack

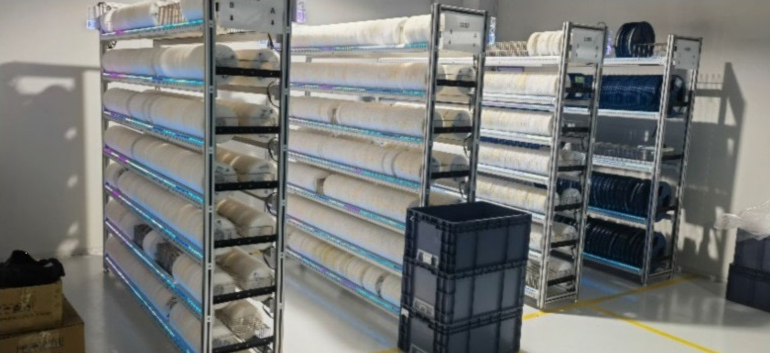

Pick by Light Reel Rack

The PassionIOT Pick by Light (PTL) Reel Rack is a practical, budget-friendly storage solution ideal for small businesses. Unlike the SMD Smart Reel Racks that rely on sensors, this system uses PDA label scanning to identify materials. It still provides one-to-one mapping for accurate material tracking and real-time inventory updates. This system minimizes human errors and maintains efficiency by guiding users with light indicators during material retrieval and storage, making it a reliable option for businesses needing a simple yet effective storage solution.
 Enquire Now
/public/uploads/images/20240422/6cb2cfe77034d968a2da0fb6e3944c92.png
/public/uploads/images/20240423/b4be02fe1d695724e9913c9e99b9734f.png

Features


In SMT production, frequent batch changes and diverse materials require fast, accurate picking.

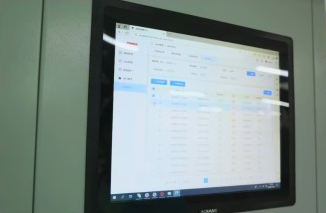

The Pick by Light Reel Rack integrates with MES for work-order-based guidance, enabling batch shelving and picking to boost line efficiency and yield.

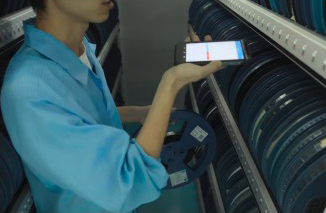

Operator scans the target reel QR code; system gets location data.






Operator scans the target reel QR code; system gets location data.






Operator scans the reel barcode; system identifies reel number, batch, and specs.

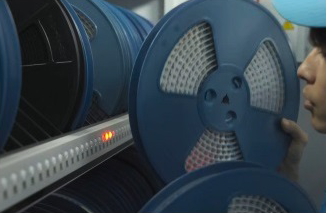

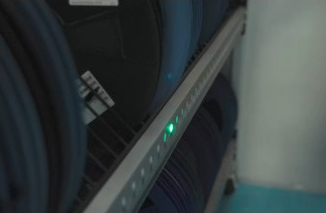

Indicator lights activate to show the exact reel location.






Operator places the reel into the assigned slot.

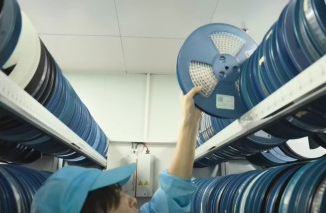

Operator follows the light cue to retrieve the reel.





PRODUCT PARAMETERS





Item

Specification

 Dimensions

L2110×W380×H1920 mm

 Storage Capacity

7 layers, double-sided, 1400 slots

Slot Specifications

Net width 16 mm, adjustable

Sensing Principle

Magnetic induction

Slot Lighting

RGB multicolor LED

Control Method

1 controller for 8 modules

 Bus Protocol

High-speed CANBUS

Uplink Interface

RJ45 TCP

ESD Protection

Full system ESD

Safety Protection

Built-in circuit breaker and leakage protection in controller

Maintenance

Modular design for easy disassembly




Item

Specification

 Dimensions

L2110×W380×H1920 mm

 Storage Capacity

5 layers, single-sided, 500 slots

Slot Specifications

Net width 16 mm, adjustable

Sensing Principle

Magnetic induction

Slot Lighting

RGB multicolor LED

Control Method

1 controller for 16 modules

 Bus Protocol

High-speed CANBUS

Uplink Interface

RJ45 TCP

ESD Protection

Full system ESD

Safety Protection

Built-in circuit breaker and leakage protection in controller

Maintenance

Modular design for easy disassembly
