Magazine Smart Warehouse

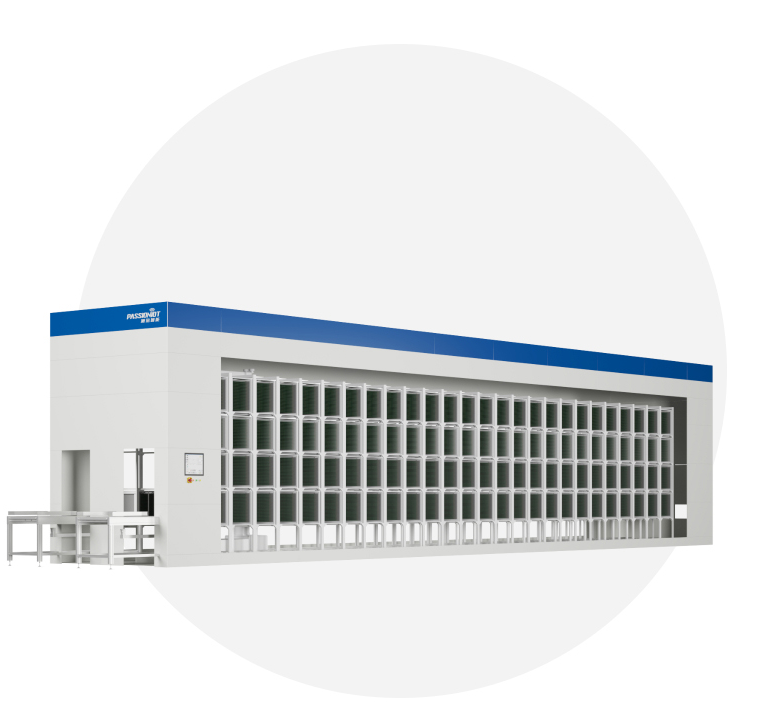

The PassionIOT Magazine Smart Warehouse is designed specifically for PCB magazine storage. It efficiently organizes and manages PCB magazines in a compact, high-density environment. The system automates the storage and retrieval processes, reducing manual handling and enhancing operational efficiency. With flexible configurations, it can accommodate various magazine sizes and integrates smoothly into existing production workflows. This storage solution is ideal for facilities that require quick access to PCB magazines while maintaining precise inventory control, streamlining production processes, and optimizing space utilization.
/public/uploads/images/20240423/e3ecd99b9770f486059ad5e76ed01310.png

Features


·Flexible Storage & Expansion



Modular Design: The storage body features a modular structure, allowing flexible expansion and configuration based on production needs.

Versatile Compatibility: Supports various sizes and types of magazine racks to meet diverse manufacturing requirements.
Optimized Space Utilization: Intelligent bin management maximizes storage efficiency.



·Efficient & Accurate Material Management



Fast Inbound & Outbound Handling: Optimized retrieval path design reduces handling time and boosts operational efficiency.

Real-Time Inventory Monitoring: System continuously tracks stock status to minimize loss and misuse.



Magazine Handling Workflow



1.PCB barcode scanned on the rail

2.Unloader scans the magazine barcode3.AGV picks up the magazine4.AGV picks up the magazine

8.Loader scans magazine barcode

7.Magazine transferred to outbound buffer dock6.Magazine transferred to outbound buffer dock5.Magazine stored in line-side warehouse



×
