Stencil Storage

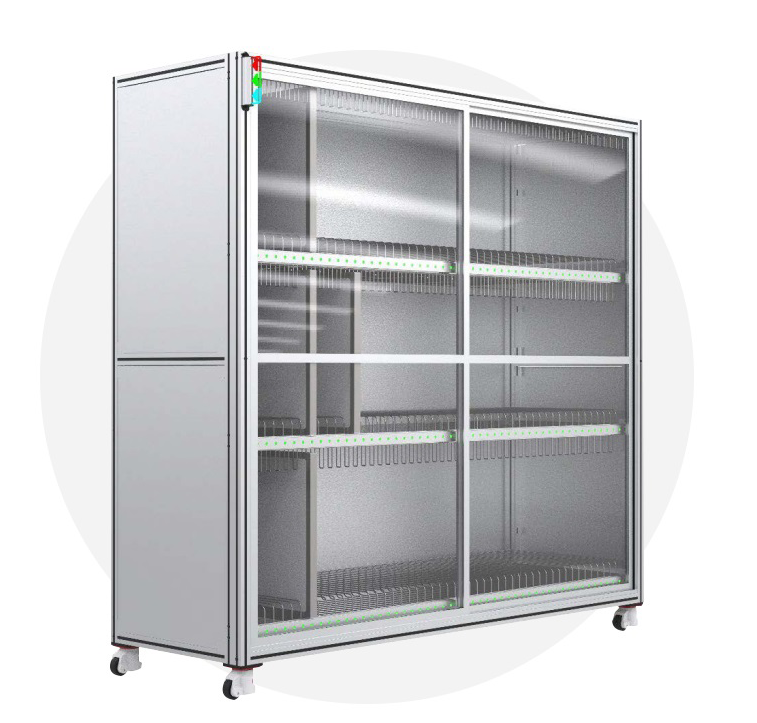

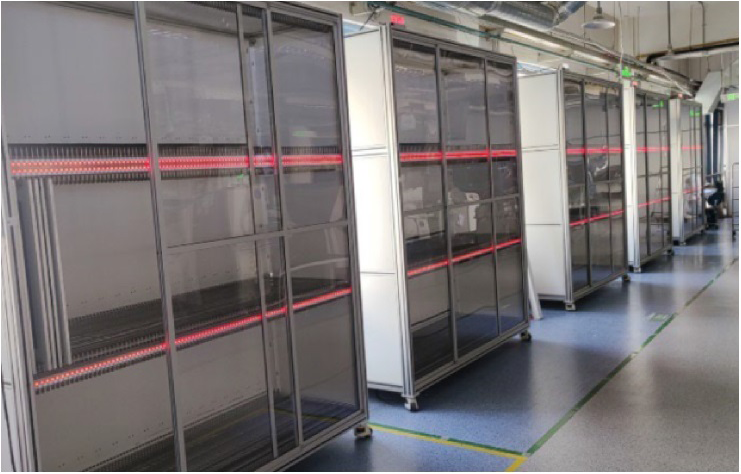

The PassionIOT Stencil Storage is specifically designed for the safe and organized storage of stencils used in SMT production processes. It provides a compact and efficient solution to protect stencils from damage, dust, and environmental factors while ensuring they are easily accessible when needed. The cabinet is designed to accommodate various stencil sizes and storage needs.
 Enquire Now
/public/uploads/images/20240423/7e2d2e0e460e784d08ecb1f0a0bad009.png
/public/uploads/images/20240423/246380b9e253668984a59f3d522bc077.png

Features


·Fast Storage via Barcode Scanning：



Operators simply scan the stencil ID and place it randomly into any available slot to complete the storage process.



·Accurate Retrieval with Pick-to-Light Guidance：



Retrieve the required stencil directly by following the light indicator; the light turns off automatically once the item is taken.



·Real-Time Error Alerts



In case of misplacement or incorrect retrieval, the indicator light turns red and an alarm sounds, effectively preventing operational errors.




Operation Workflow Overview



Inbound Process：


·Enter stencil basic information
·Scan the stencil barcode
·Place the stencil into any available storage slot



Outbound Process：


·Enter or scan the stencil ID to retriev
·Enter or scan the stencil ID to retriev
·Operator retrieves the stencil by following the light indicator






PRODUCT PARAMETERS






Item

Specification

Dimensions

L2110 × W780 × H1900 mm

 Storage Capacity

2 layers, single-sided, 736-type, 350 mm thick stencil,

40 pcs per layer, 80 slots/set

3 layers, single-sided, 584-type, 300 mm thick stencil,

40 pcs per layer, 120 slots/set

3 layers, single-sided, 550-type, 300 mm thick stencil,

40 pcs per layer, 120 slots/set

Sensing Principle

Magnetic induction

Slot Lighting

RGB multicolor LED

 Bus Protocol

High-speed CANBUS

Uplink Interface

RJ45 TCP

ESD Protection

Full system ESD

Safety Protection

Built-in circuit breaker and leakage protection in controller

Maintenance

Modular design for easy disassembly
