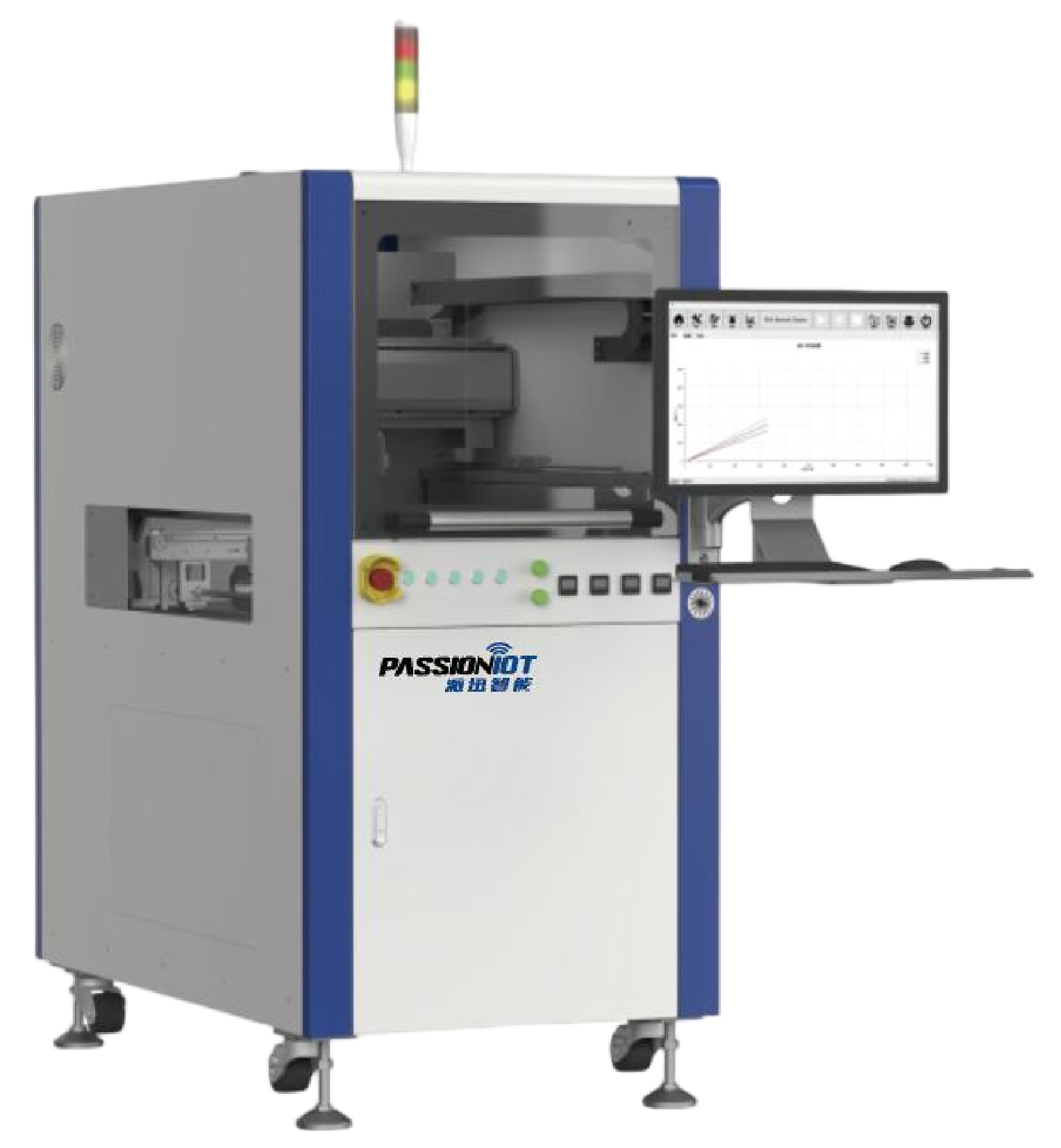

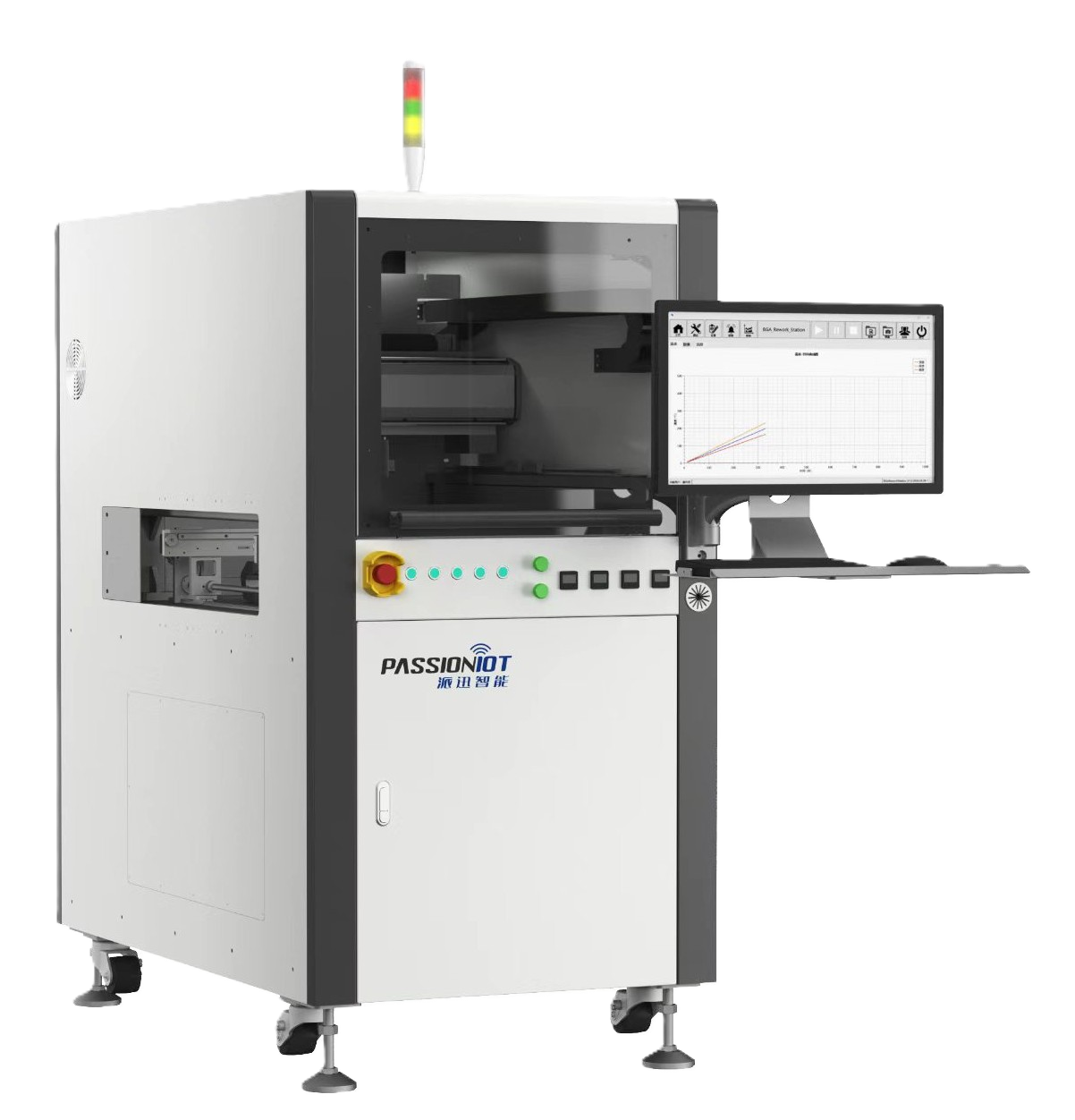

Timing Belt Module Dispenser

A high-speed dispensing system designed for long-travel and large-format dispensing applications. Featuring a timing belt module transmission structure, vision-guided positioning, and multi-axis motion control, it delivers efficient and stable dispensing performance for a wide range of automated manufacturing processes.

Enquire Now

/public/uploads/images/20260609/Timing Belt Module Dispenser.png

Features

· Timing belt module and servo-driven transmission provide lightweight construction, high-speed operation, and excellent performance for long-travel dispensing applications.

· Advanced motion control ensures smooth dispensing paths and consistent dispensing output, balancing production efficiency with process stability.

· Ideal for mobile device housings, battery assemblies, consumer products, electronic accessories, and other high-throughput dispensing applications.

PRODUCT PARAMETERS


Configuration/Feature	Description & Parameters
Overall Dimensions (mm)	80014001600
Equipment Weight (kg)	500


Dispensing Effective Stroke (mm)	Single valve: 350 × 350 × 50 / Dual valve: 300 × 350 × 50
X/Y/Z Repeat Positioning Accuracy (mm)	X/Y/Z：±0.04
Maximum Travel Speed (mm/s)	1000
Drive System	X/Y Axes: Servo motor + timing belt module Z Axis: Servo motor + lead screw module
Conveyor Width Adjustment Range (mm)	50~450
Air Pressure Requirement (MPa)	0.5~0.7
Power Supply	AC:220V 50Hz
Standard Configuration	3-axis module Vision system Wiper module Needle calibration module Single-track conveyor module
Optional	Dispensing valve Cleaning module Weighing module Dual-valve module Height measurement module Conveyor heating module
