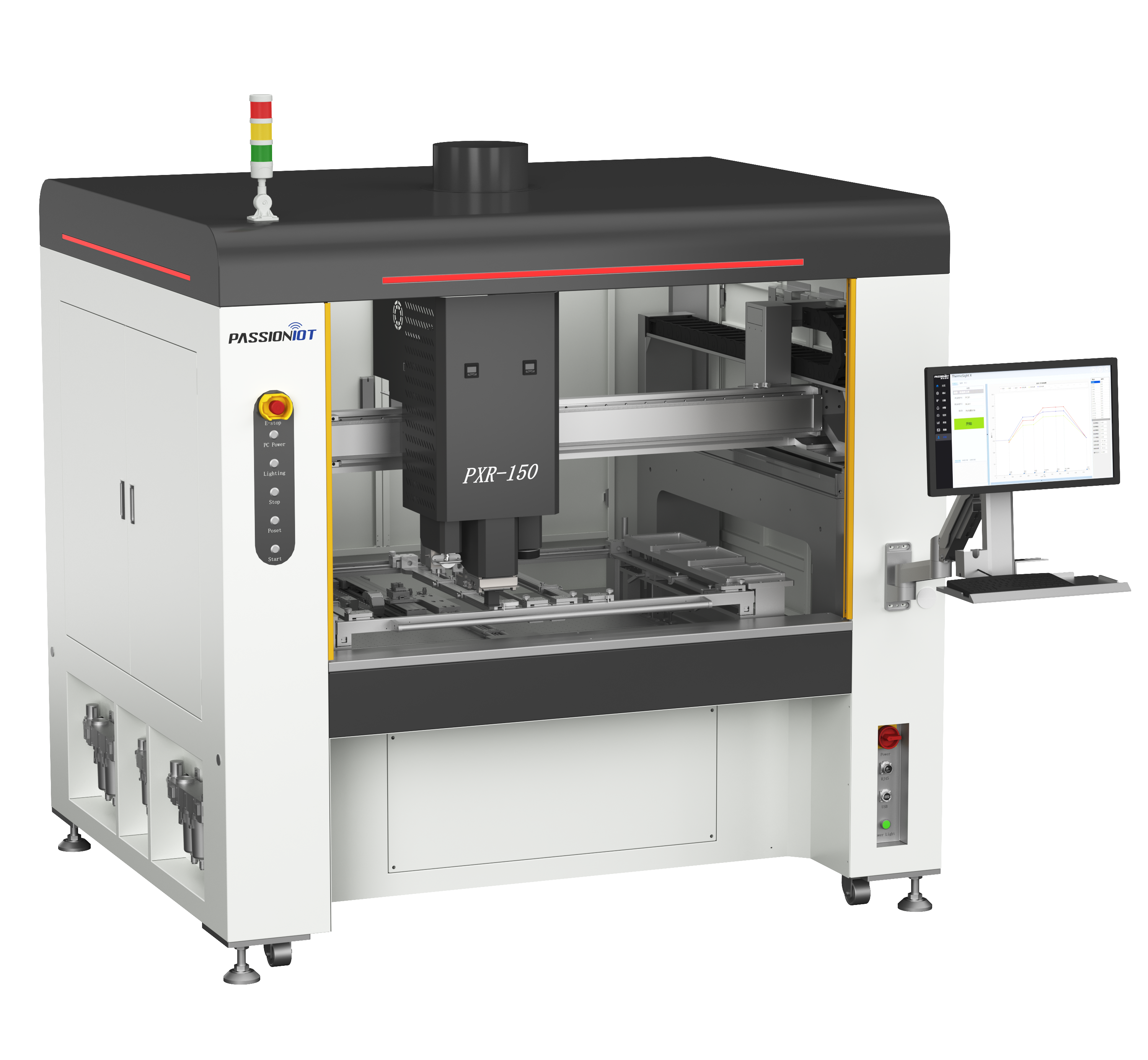

PXR-150 Fully Automatic BGA Rework System

Designed for server, telecom, and high-reliability electronics manufacturing, the PXR-150 automates the complete BGA rework process—from component removal to final soldering. With powerful multi-zone heating and precise temperature control, it delivers consistent results on complex, high thermal-mass assemblies while improving productivity and reducing operator dependence.

Enquire Now

Features

· Fully Automated BGA Rework: Integrates automatic component removal, solder removal, solder paste dipping, component placement, and soldering into a single system, enabling fully automated BGA rework operations.

· Three Independent Heating Zones, Precise Temperature Control: Equipped with three independent high-power heating modules, the system enables zoned temperature control with powerful and stable heat output, meeting the demands of complex BGA rework processes.

· Designed for Large, High-Thermal-Mass PCBs: Specifically designed for large, high-reliability PCBs used in servers, networking equipment, and other applications, effectively handling complex rework scenarios involving thick substrates and high thermal loads.

· High-Precision Placement, Stable Soldering: Precisely controls BGA component removal and placement, combined with stable temperature control and soldering processes to ensure consistent and reliable rework quality.

· Reduced Manual Intervention, Enhanced Rework Efficiency: Automates key rework processes to minimize manual operations and operator-dependent variations, enabling more efficient and consistent BGA rework.

Product Parameters

Item	Contents
Maximum PCBA size	1000750 mm (Expandable to 10001400 mm)
Maximum PCBA thickness	15 mm


Maximum component range	150*150 mm
Placement accuracy	±10 μm
Camera resolution	2000 W
Bottom area preheating Power	24 kW
Top main heater power	3.3 kW
Desoldering Heater Power	1120 W
Local heater power	3 kW
Temperature control accuracy	±1 ℃
Support maximum height of component at bottom of PCBA	120 mm
Gas supply - Air	0.6-0.8 MPa 2400 L/min
Gas supply - N2	0.5-0.6 MPa 200 L/min
Power supply	AC 380 V, 34 kW
Machine dimensions	210017002000 mm
Machine weight	1600 kg
