Home PRODUCTS Solder Paste Management

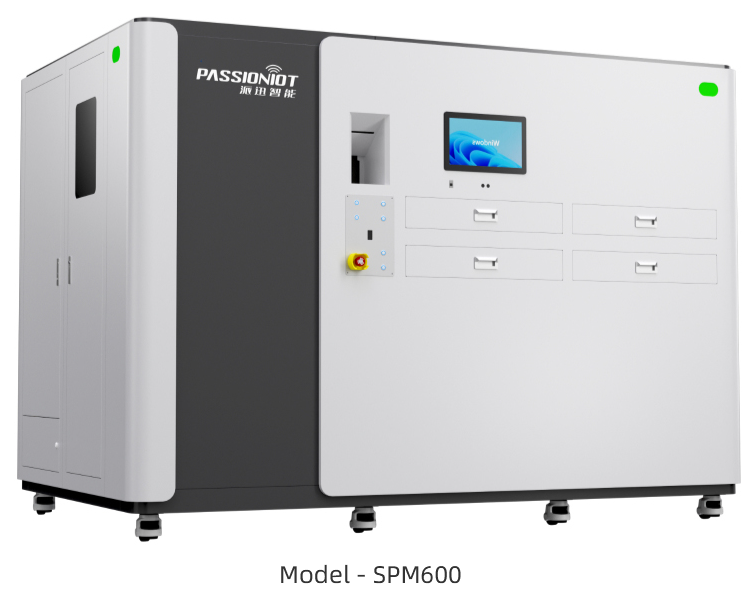

Solder Paste Storage

The PassionIOT Solder Paste Storage is a specialized solution designed for optimal handling of solder paste materials. It features distinct refrigerated, warming, and stirring zones, ensuring that solder paste is stored under precise temperature conditions and ready for use. The system includes a limited shelf-life management function for near-expiration materials, providing real-time tracking and efficient usage. The controlled environment ensures the quality and consistency of solder paste, making it ideal for electronics manufacturing.
 Enquire Now
/public/uploads/images/20250320/xigao1.png
/public/uploads/images/20250320/xigao2.png
/public/uploads/images/20250320/xigao3.png

Features

Solder Paste Storage - PassionIOT

·Traceable & Reliable



Full traceability of solder paste thawing and stirring

Real-time sync with MES/ERP/WMS
Reduces quality issues caused by manual operations


·Efficient & Intelligent



Efficient & Intelligent

Optimized access port for refrigeration zone minimizes cold loss
Optimized access port for refrigeration zone minimizes cold loss


·Optimized access port for refrigeration zone minimizes cold loss



Operation structure design is ergonomically and user-friendly

Operation structure design is ergonomically and user-friendly



Solder Paste Storage - PassionIOT



PRODUCT PARAMETERS




Solder Paste Storage - PassionIOT


Items

Specifications

Dimensions

L2,000×W1,650×H2,000mm

Weight

1,500 Kg

Power

5 KW

Power Supply

220 V

Solder Paste Weight

500 g (Standard Bottle)

Solder Paste Type

Supports Bottles and Syringes

Supported Bottle Size

Bottle Diameter: 60 mm; Cap Diameter: 68 mm;

Height: 75 mm (±2 mm)

Storage Methods

Rotating stacked material storage, compression refrigeration cooling, and QR code scanning for input/output traceability

Frozen Zone Capacity

330 Bottles

Frozen Temp

Temperature Range: (0-10℃), Suggest Range(3-8℃)

Rewarming Zone Capacity

45 Bottles

Rewarming Temp Control

Room Temp

Inbound Each Time

16 Bottles

Retrieval Each Time

1 Bottle

Rotation Speed

500 RPM

Access Control

Password/Card/Fingerprints/Facial ID






Solder Paste Storage - PassionIOT

Items

Specification

Dimensions

L2,700×W1,650×H2,000mm

Weight

2,100 Kg

Power

6.5 KW

Power Supply

220 V

Solder Paste Weight

500 g (Standard Bottle)

Solder Paste Type

Supports Bottles and Syringes

Supported Bottle Size

Bottle Diameter: 60 mm; Cap Diameter: 68 mm;

Height: 75 mm (±2 mm)

Storage Methods

Rotating stacked material storage, compression refrigeration cooling, and QR code scanning for input/output traceability

Frozen Zone Capacity

660 Bottles

Frozen Temp

Temperature Range: (0-10℃), Suggest Range(3-8℃)

Rewarming Zone Capacity

90 Bottles

Rewarming Temp Control

Room Temp

Inbound Each Time

32 Bottles

Retrieval Each Time

1 Bottles

Rotation Speed

500 RPM

Access Control

Password/Card/Fingerprints/Facial ID




PRODUCT ADVANTAGES



Solder Paste Storage - PassionIOT

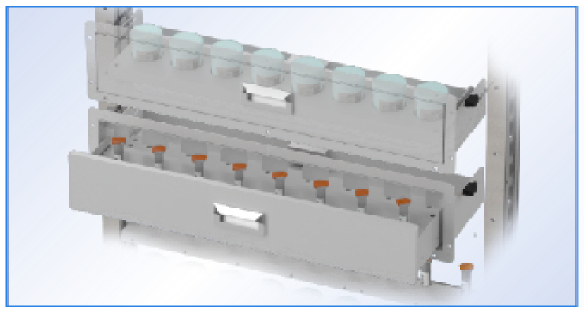

·Next-Generation Loading System



-Supports jar and syringe-type solder paste batch loading

-Holds 16 bottles per load; modular design for capacity expansion

-Position-limiting design ensures precise placement for reliable gripper

-Drawer-style mechanism prevents bodily intrusion into equipment, ensuring safety


Solder Paste Storage - PassionIOT

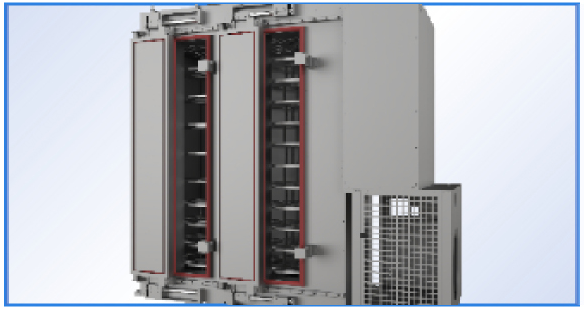

·Innovative Refrigeration Technology



-"Zero Condensation" system with self-evaporation minimizes maintenance requirements

-Rotating shelves allow access without full drawer extension, improving efficiency

-Optimized access port reduces cold air loss and ensures stable temperature

Solder Paste Storage - PassionIOT

·Stable and Reliable Quality



--Industrial-grade design standards ensure robust performance
Professionally engineered and validated electrical/control systems
High-quality components for long-term reliability
CE-certified with global deployment capability

Solder Paste Storage - PassionIOT

·Ergonomically Optimized Structure



-Designed to meet ISO 11228, EN 614-1/IEC 614-1 standards

Improved material port for better access and safety

Optimized operational convenience across all device interfaces

Human-machine collaboration upgraded for both efficiency and safety
