Smart Tower for SMD Technology | SMD Storage Tower

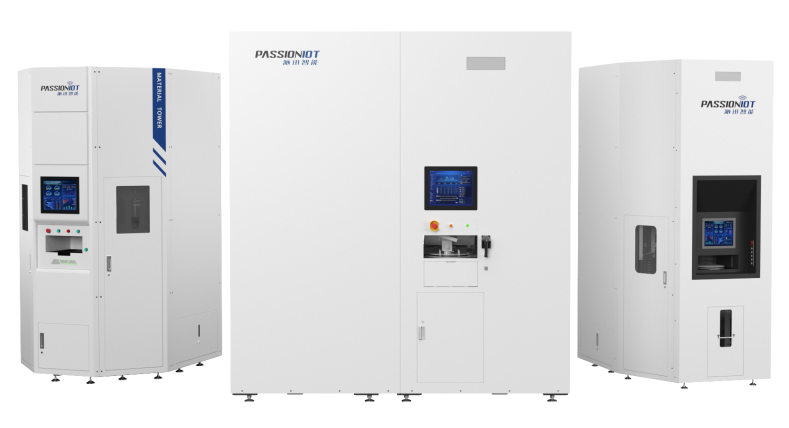

SMD Smart Tower

The PassionIOT SMD Smart Tower is a compact yet high-capacity SMD storage tower, accommodating up to 980 reels within just 1.5 m² of floor space. Built with advanced smart tower SMD technology, it ensures accurate tracking and rapid retrieval of components—significantly reducing errors and improving the efficiency of pick-and-place operations in SMT environments.
As a fully integrated smart tower solution, it connects seamlessly with existing material handling systems, offering flexible and scalable options tailored to modern production lines. Ideal for high-frequency access and controlled storage needs, the system enhances space utilization and streamlines material flow in advanced manufacturing.

Enquire Now

/public/uploads/images/20241223/smart tower.png

/public/uploads/images/20240327/0a2892572a369d289100a34abf0c324f.png

/public/uploads/images/20241223/tower2.png

/public/uploads/images/20241223/tower3.png

Features

Smart Tower - PassionIOT

·Temp & Humidity Control

The SMD storage tower maintains a stable internal environment, ensuring SMD technology components stay in peak quality.

·Safety Assured

The smart tower features auto shutdown and protection for safe SMD tower operation in abnormal conditions.

·Space-Saving Storage

Occupying only ~1 m², the SMD smart tower optimizes daily storage and management efficiency.

·Modular Design

The expandable SMD storage tower adapts easily to varying storage needs in electronics production.

·Flexible Operation

Supports standalone use or multi-unit smart tower collaboration for scalable operations.

·System Integration

Seamlessly connects with MES/ERP, enhancing material flow and showcasing advanced SMD technology in a smart tower setup.

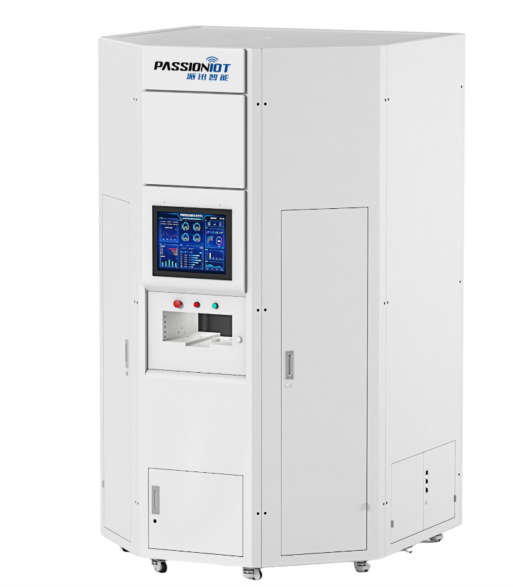

Smart Tower - PassionIOT

Applicable features：

● Low-Cost Automation: The SMD smart tower utilizes SMD technology to combine manual and automated operation, delivering efficient storage for small-scale production lines.

●High Precision: Single-reel handling in the SMD storage tower ensures accurate storage and retrieval, showcasing the capabilities of a modern smart tower.

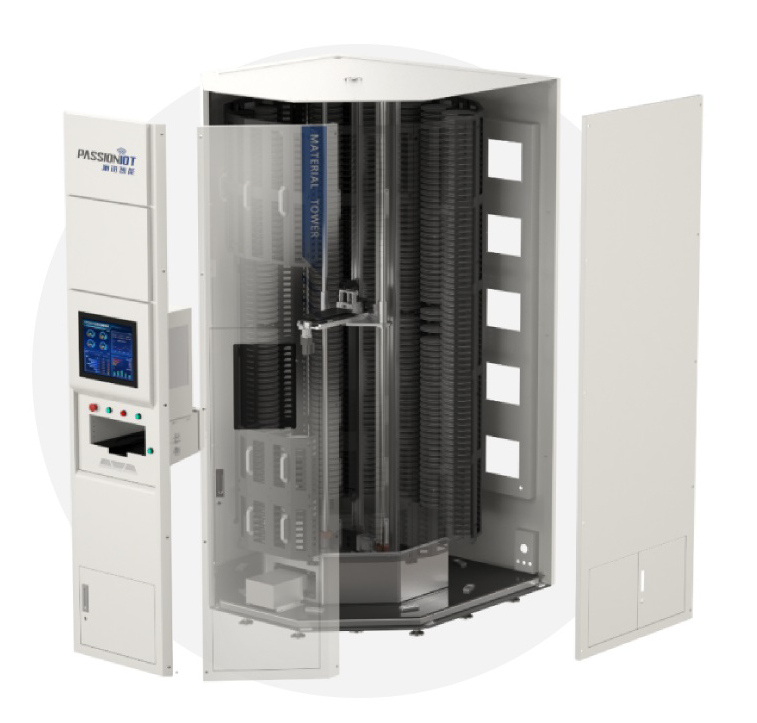

Smart Tower - PassionIOT

Applicable features：

●AGV-Ready + Batch Operation: The SMD smart tower with advanced SMD technology supports fast, automated loading and unloading via AGV.

●Mixed Reel Compatibility: Stores both 7" and 13" reels in one smart tower, maximizing capacity and flexibility.

Product Parameters

Smart Tower - PassionIOT

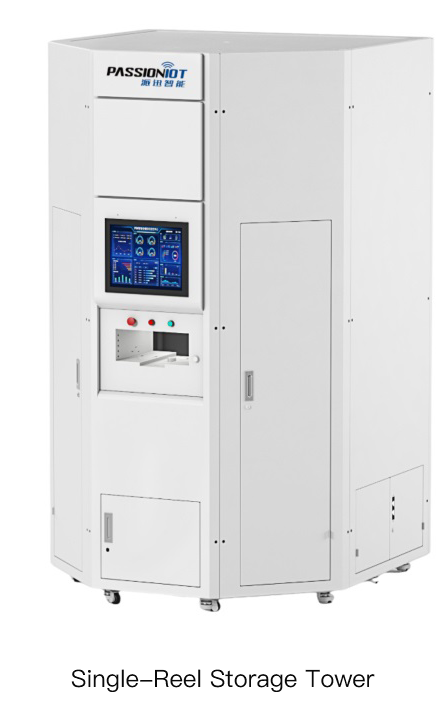

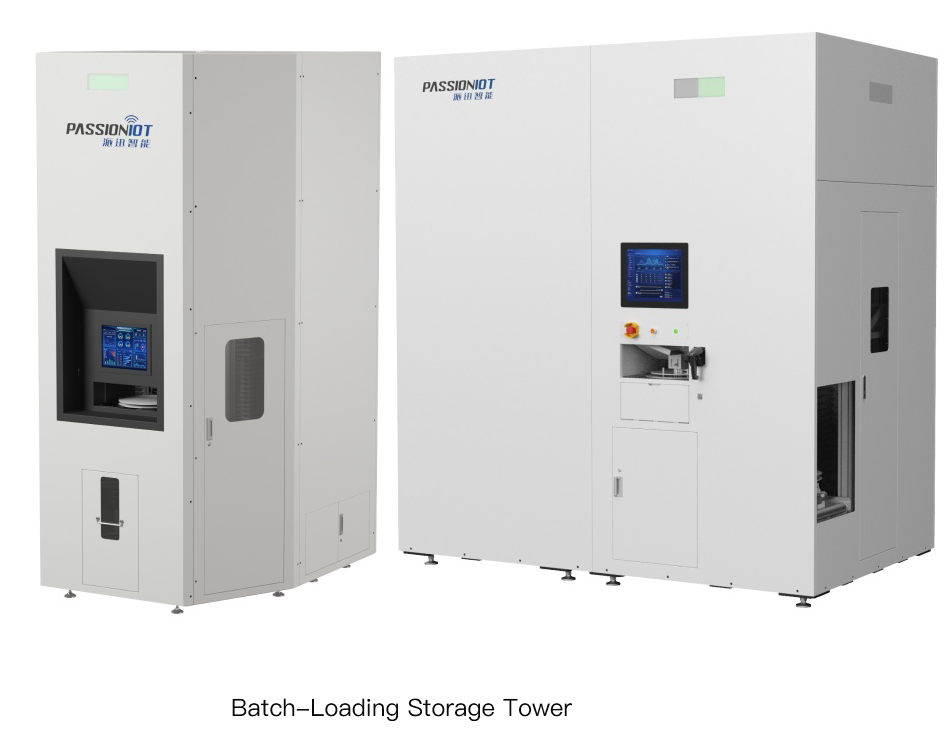

Single-Reel Storage Tower		Batch-Loading Tower
Tower Height	Storage Capacity	Capacity Configura	Storage Capacity
2.5m	835 reels	100％ 7" 12 mm	950 reels
2.8m	995 reels	100％ 13" 16 mm	360 reels
3.0m	1100 reels	80％ 7" 12mm+20% 13" 16mm	650 reels（7" 12mm）+110 reels（13" 16mm）
3.2m	1208 reels	70％ 7" 12mm+30% 13" 42mm	300 reels（7" 12mm）+100 reels（13" 42mm）

Smart Tower - PassionIOT

Item		Specification
Supported MaterialTypes, Effiency and Operation Methods	Reel Siz	7" (8-72 mm) /13" (8-72 mm) / 15" (Optional）
	Supported Material Types	Reel / Wafer / Tray / Box / PCB Other Irregular-Shaped Material
	Average Store/Retrieval Time	8-15 s
	Material In/Outbound Method	Manual (optional automatic configuration)
Label Recognition System	Label Recognition Method	Automatic Visual Recognition System
	Label Reading Range	400 × 400 mm
	Label Recognition Types	Bar Code / QR Code
Installation Technical Requirements	Dimensions	L1550×W1567 mm(can be customized)
	Weight	1200-1400kg
	Power Supply	Single-Phase 220 V, AC, 50 Hz
	Rated Power	3 kw
	Temperature and Humidity Control	Temperature:10°C-45°C Humidity:5 %-60 %
	Operational Noise	≤55 dB
