Linear Motor Dispenser

The Linear Motor Dispenser is a high-precision fluid dispensing system designed for high-volume manufacturing environments. Equipped with a vision-guided positioning system and advanced motion control technology, it supports high-speed jet dispensing and a variety of dispensing processes. Ideal for SMT reinforcement, underfill applications, COB packaging, and other precision manufacturing processes, it delivers high accuracy, rapid response, and seamless integration into automated production lines.
 Enquire Now

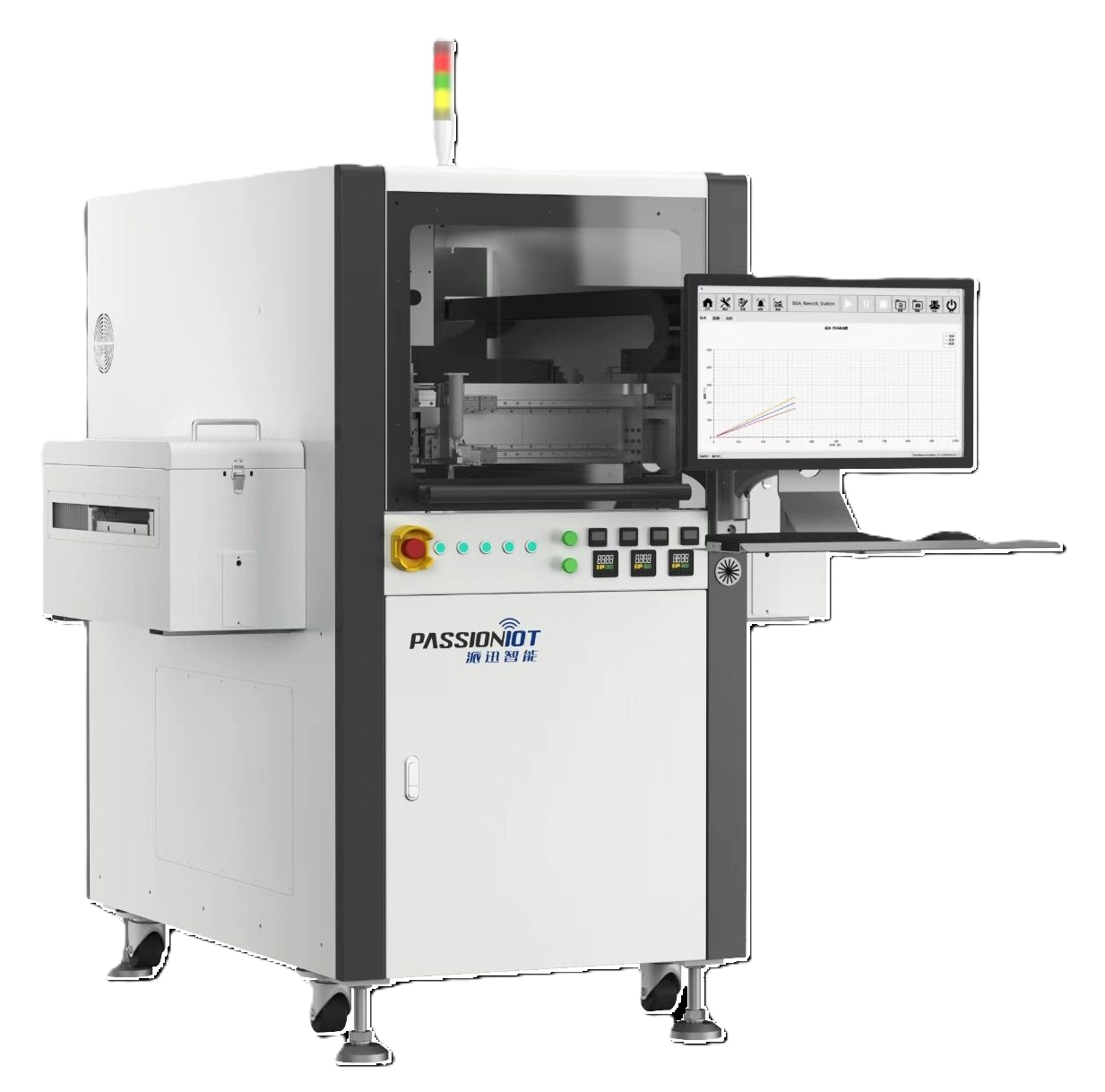

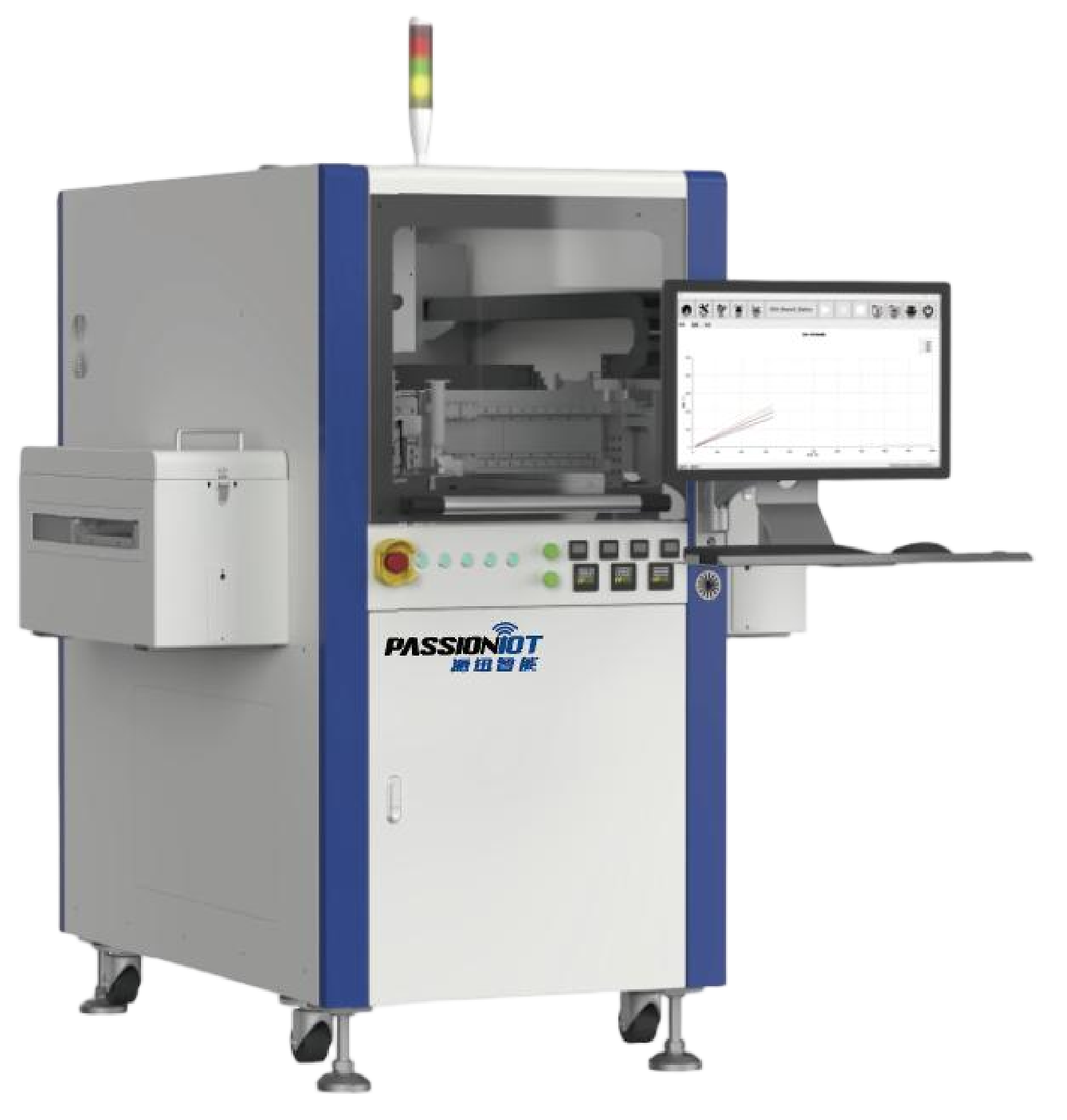

/public/uploads/images/20260608/Linear Motor Dispenser.png

Features

· Linear motor direct-drive architecture eliminates intermediate transmission components, reducing mechanical errors while achieving higher positioning accuracy and faster dynamic response.
· Advanced motion control technology ensures smooth dispensing paths and consistent dispensing volumes, making it suitable for miniature components and complex dispensing patterns.
· Widely used in semiconductor packaging, microelectronics assembly, precision sensors, and other applications requiring high dispensing accuracy and process consistency.





PRODUCT PARAMETERS




Configuration/Feature

Description & Parameters
Overall Dimensions（mm）

800*1400*1600 / 1300*1400*1600 (with left/right heating conveyors)

Description & Parameters（kg）

800 / 860 (with left/right heating conveyors)

Dispensing Effective Stroke（mm）

Single valve: 290*400*50 / Dual valve: 240*400*50

X/Y/Z Repeat Positioning Accuracy（mm）

X/Y：±0.005   Z：±0.02

Maximum Travel Speed（mm/s）

1200

Drive System

X/Y Axis: Linear motor / Z Axis: Servo motor + lead screw module

Conveyor Width Adjustment Range（mm）

50~450

Air Pressure Requirement（MPa）

0.5~0.7

Power Supply

AC 220V 50Hz

Standard Configuration

3-axis module

Vision system

Wiper module

Needle calibration module

Single-track conveyor module

Optional

Dispensing valve

Dual-valve module

Cleaning module

Height measurement module

Weighing module

Conveyor heating module
