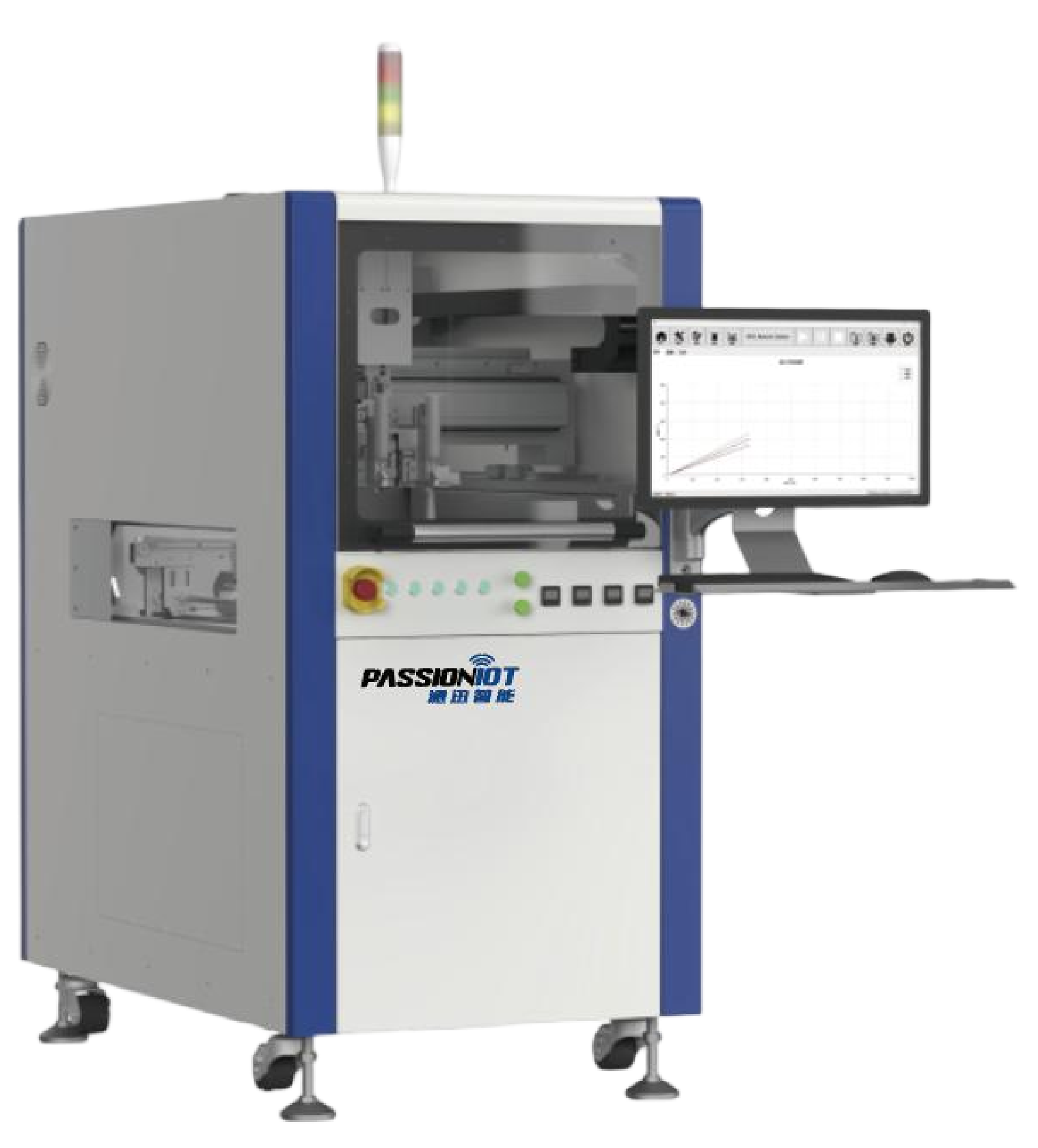

Lead Screw Module Dispenser

A versatile and cost-effective dispensing system designed for a wide range of automated manufacturing applications. Equipped with a vision-guided positioning system and multi-axis motion control, it delivers stable, accurate, and consistent dispensing performance for various adhesive processes.

Enquire Now

/public/uploads/images/20260608/Lead Screw Module Dispenser.png

Features

· Precision lead screw module transmission ensures stable operation, strong load capacity, and reliable dispensing accuracy.

· Advanced motion control enables precise path execution and uniform dispensing output, supporting straight-line, arc, and complex dispensing patterns.

· Ideal for PCB assembly, SMT reinforcement, component encapsulation, connector dispensing, LED packaging, and other general-purpose dispensing applications.

PRODUCT PARAMETERS


Configuration/Feature	Description & Parameters
Overall Dimensions（mm）	80014001600
Description & Parameters（kg）	500


Dispensing Effective Stroke（mm）	Single valve: 40035050 / Dual valve: 35035050
X/Y/Z Repeat Positioning Accuracy（mm）	X/Y/Z：±0.02
Maximum Travel Speed（mm/s）	500
Drive System	X/Y/Z Axes: Servo motor + lead screw module
Conveyor Width Adjustment Range（mm）	50~450
Air Pressure Requirement（MPa）	0.5~0.7
Power Supply	AC:220V 50Hz
Standard Configuration	3-axis module Vision system Wiper module Needle calibration module Single-track conveyor module
Optional	Dispensing valve Cleaning module Weighing module Dual-valve module Height measurement module Conveyor heating module
