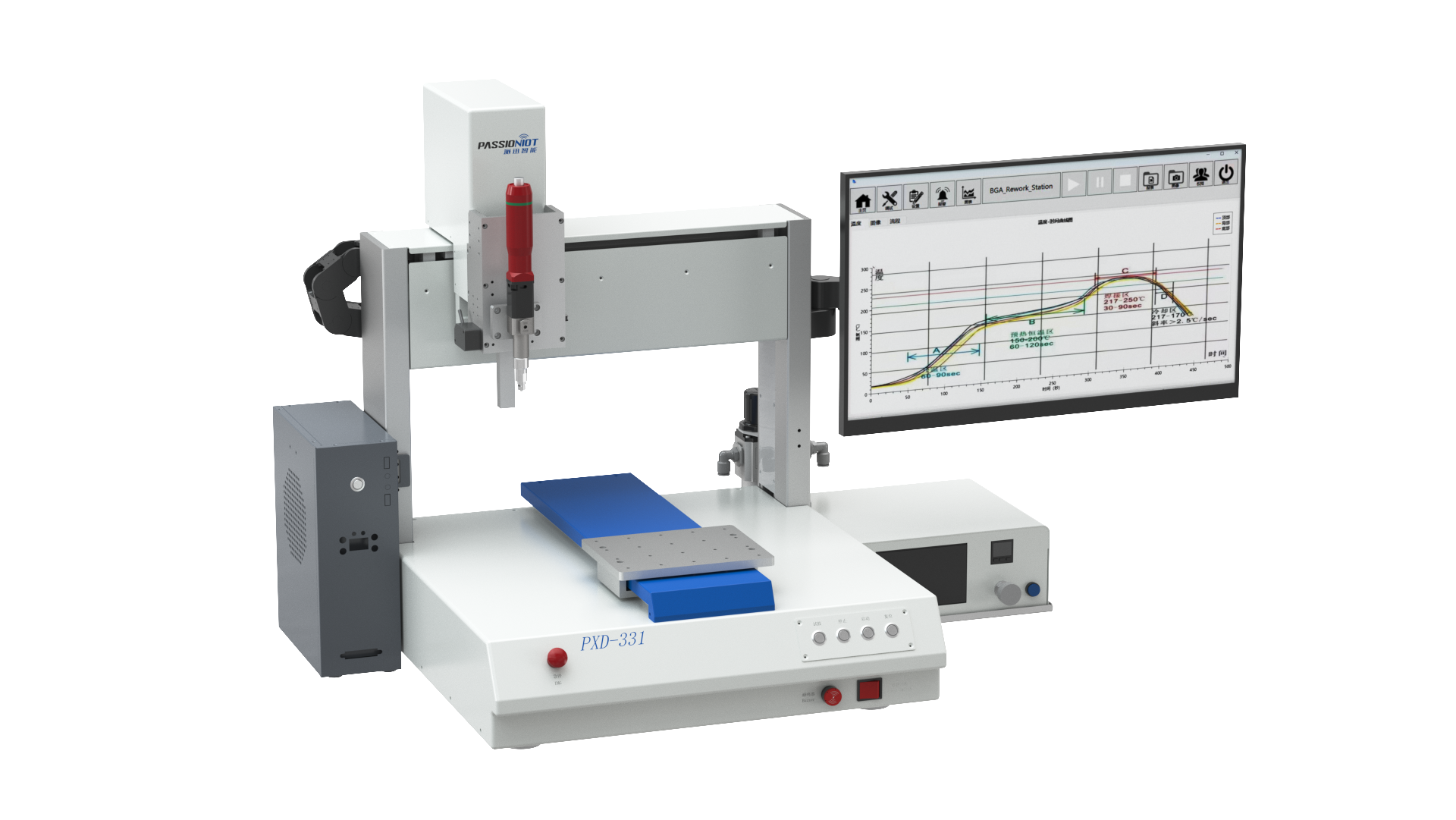

Desktop Dispensing Machine

A compact and versatile dispensing system designed for precision fluid dispensing applications. Equipped with an XYZ motion platform and advanced dispensing control technology, it delivers accurate and consistent dispensing performance for a wide range of manufacturing processes. Its space-saving design allows for standalone operation, making it ideal for laboratories, R&D environments, and small-to-medium-volume production.

Enquire Now

/public/uploads/images/20260611/Desktop Dispensing Machine.png

Features

· High-Precision Performance

High-precision motion control with repeatability up to ±0.02 mm, ensuring accurate and consistent dispensing performance.

· Intelligent Dispensing Control

Intelligent XYZ-axis synchronization supports dots, lines, circles, arcs, and other complex dispensing patterns with stable adhesive output.

· Wide Application Compatibility

Compatible with multiple dispensing valves and adhesive materials, making it ideal for SMT assembly, consumer electronics, sensor packaging, and semiconductor-related applications.

Product Parameters


Configuration/Feature	Description & Parameters
Equipment Name	Desktop Dispensing Machine (Compatible with Piezo Valve, Screw Valve, and Pneumatic Valve)
Dimensions（mm）	Overall Dimensions (including IPC and Valve Controller): 1200 × 650 × 700 Machine Body: 550 × 650 × 700


Weight（kg）	70
Worktable Size（mm)	190*150
Dispensing Travel（mm)	Single Valve：X:300 Y:300 Z:100
Repeatability（mm)	±0.02
Air Pressure（MPa）	0.5-0.7
Power Supply	AC:220V 50Hz
Standard Features	Vision-Guided Positioning, Barcode Scanner Interface
Optional Features	Laser Height Measurement Module
