Servo Press

·Precision Press-Fit with Full Traceability

Driven by a servo motor and ball screw with full closed-loop control of pressure and displacement. Pressure accuracy reaches ±0.2% FS, while displacement resolution is 0.01 mm. Comprehensive process data recording ensures full traceability and reliable quality control.

·Energy Efficient and Flexible Production

Consumes over 80% less energy than conventional presses while maintaining high performance. Oil-free and low-noise operation makes it suitable for cleanroom environments. Equipped with a 7-inch touchscreen capable of storing up to 100 programs for flexible adaptation to various production requirements.

·Robust Construction and Reliable Safety

Built with a one-piece steel frame for enhanced rigidity and durability. Integrated safety light curtains and an automatic lubrication system ensure safe operation, simplified maintenance, and reliable performance across a wide range of precision press-fit applications.

Limb Quality Inspection System

·Synchronized Testing of Three Joints

Custom-designed for robotic dog limb motors, enabling simultaneous testing of torque, motion angle, and operational noise across all three joints without frequent station changes, improving testing efficiency and process consistency.

·High-Precision Data Acquisition

Equipped with high-precision torque sensors and angle encoders to ensure accurate measurement and excellent repeatability. Test data is displayed in real time and can be uploaded directly to MES systems for traceability and quality management.

·Compact and Flexible Deployment

Supports customizable test parameters and user-friendly operation. Its compact footprint allows easy deployment in both laboratory and production environments, while low energy consumption, stable performance, and simplified maintenance ensure reliable long-term operation.

Lifting & Rotating Workbench

·Flexible Compatibility for Multiple Product Types

Custom-designed for robotic dogs, drones, chassis, and other products. Different applications can be accommodated simply by replacing the fixture plate, eliminating the need for workstation modifications and significantly improving production and debugging efficiency across multiple scenarios.

·Mobile Design with Enhanced Safety

Equipped with swivel casters for easy movement and positioning, supporting flexible workflow between multiple workstations. The lifting mechanism is driven by an electric actuator for effortless operation and features a power-off self-locking function to maintain position during unexpected power outages, ensuring the safety of both equipment and operators.

·Heavy-Duty Rotation with Precise Positioning

The rotating platform is equipped with high-load angular contact bearings capable of withstanding substantial axial and radial loads. Smooth, stable rotation and excellent positioning accuracy make it ideal for assembly, inspection, and other operations in demanding heavy-load applications.

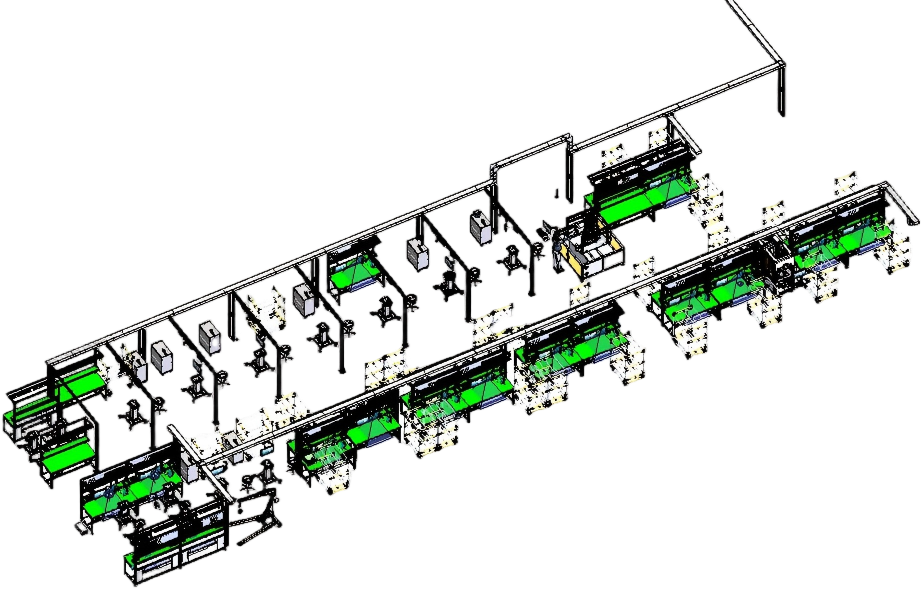

Dispensing & Assembly Line

·Integrated Production Line Coordination

Designed for chip-on-wafer bonding applications, this automated assembly line integrates five core stations: loader, tunnel oven, dispenser, placement machine, and unloader. A carrier circulation system supports automatic tray loading and unloading, enabling fully automated production throughout the entire process.

·Fully Automated Operation

Operators are only required to load and unload trays, while all critical manufacturing processes are completed automatically. Once products enter the line, dispensing, chip placement, and other key operations are performed without manual intervention, improving productivity and reducing labor requirements.

·Flexible Process Adaptation

The system automatically switches carriers according to different product requirements, ensuring seamless adaptation to various manufacturing processes. This flexible design enhances production efficiency, maintains process continuity, and delivers consistent product quality across multiple applications.
