5-Axis Simultaneous Motion Dispenser

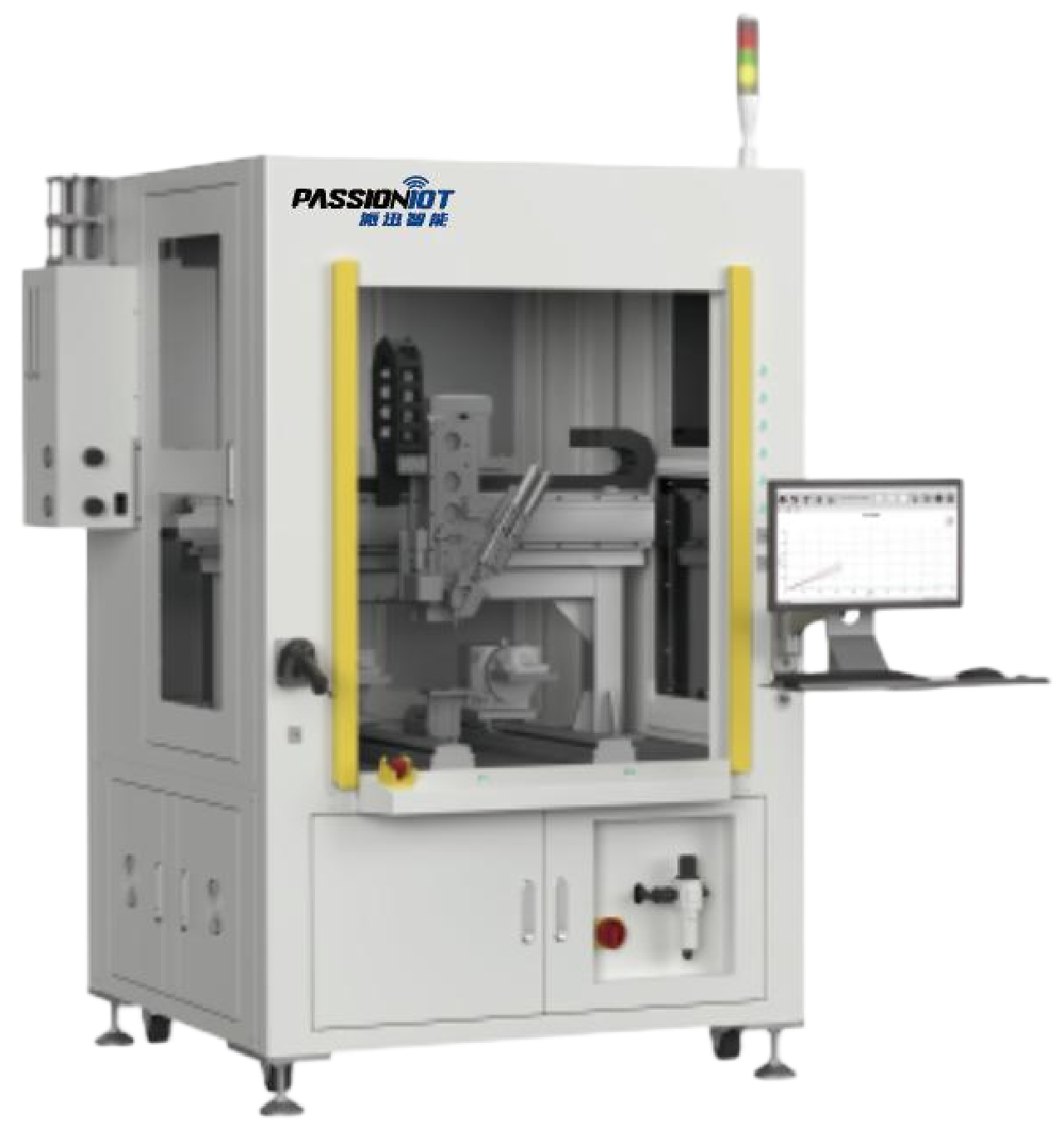

A highly flexible dispensing system designed for complex three-dimensional applications. Equipped with a 5-axis motion control system, vision-guided positioning, and high-precision fluid dispensing technology, it delivers accurate and consistent dispensing on multi-angle, curved, and irregular workpieces. Ideal for advanced manufacturing environments requiring superior flexibility and process adaptability.

Enquire Now

/public/uploads/images/20260610/5-Axis Simultaneous Motion Dispenser.png

Features

· Five-axis linkage structure combining XYZ linear axes with dual rotary axes enables precise dispensing on complex surfaces, angled features, and irregular geometries.

· Advanced multi-axis motion control ensures smooth trajectory execution and accurate dispensing volume control for challenging 3D dispensing applications.

· Ideal for automotive sensors, aerospace electronics, medical device components, complex structural parts, and other high-precision manufacturing applications.

PRODUCT PARAMETERS


Configuration/Feature	Description & Parameters
Overall Dimensions (mm)	130012001800
Equipment Weight (kg)	500


Dispensing Effective Stroke (mm)	X1=200 X2=200 Y=200 Z=200 (Dual Y platforms)
X/Y/Z Repeat Positioning Accuracy (mm) A/U Repeat Positioning Angle Accuracy（arcsec）	X/Y/Z：±0.02 A/U: ±6
Maximum Travel Speed (mm/s)	500
Drive System	X/Y/Z Axes: Servo motor + lead screw module A/U Axes: DD motor
Air Pressure Requirement (MPa)	0.5~0.7
Power Supply	AC:220V 50Hz
Standard Configuration	3-axis module Vision system Wiper module Needle calibration module
Optional	Dispensing Valve Weighing Module Barcode Scanner Height Measurement Module Nozzle Cleaning Module 3D Line Scan Camera
